Bridge Surface

Bridge Surface

Command
Bridge Surface
Shortcut
-
Button
- button-none

Blend between two disconnected Surfaces with available shape options G2 or Chamfer. Redundant surfaces may be trimmed.

Basic Usage

Bridging Separated Surfaces

  1. Use Bridge Surface command in the Command Palette.
  2. Select two Sheets to be connected.
  3. Set the options in the Command Dialog.
    • Command Dialog
      • Width: Specify the width of the bridge.
      • Shape:
        • G2: The bridge surface is G2 continuous.
        • Chamfer: The bridge surface is chamfered.
      • Trim walls: When enabled, trim the surfaces behaind the bridge.

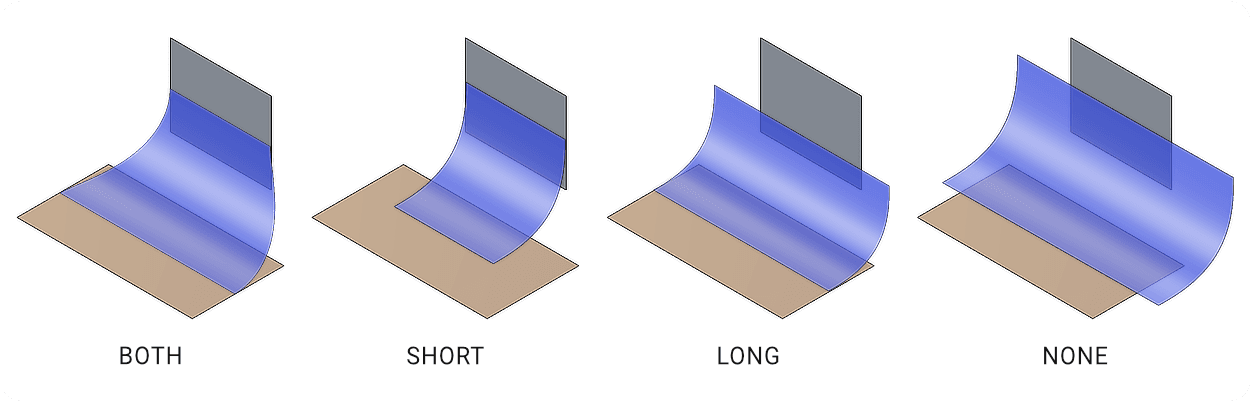

      • Trim blend:
        • Both: Trim both sides of the bridge surface.
        • Short: Trim the shorter side of the surface.
        • Long: Trim the longer side of the bridge surface.
        • None: Do not trim the bridge surface.
  4. Confirm with OK in the Command Dialog or right-click.

Bridging Intersecting Surfaces

  1. Use Bridge Surface command in the Command Palette.
  2. Select the first surface and the second surface.
  3. Set the options in the Command Dialog.
    • Sense:
      • Sense 1/Sense 2: Reverse the direction of the bridge surface.
    • Other options are the same as above.
  4. Confirm with OK in the Command Dialog or right-click.
