Project Curve Body

Command

Project Curve Body

Shortcut

I

Button

Right of the command bar

Create a new Curve by projecting a Curve onto a Solid or Sheet. Choose projection method normal or direction vector. Bidirectional is also available.

Basic Usage

1. Select the Solid or Sheet to project onto.
2. Press I or click the button.
3. Select the Curve to project.
4. Set the options in the Command Dialog:
   • Command Dialog

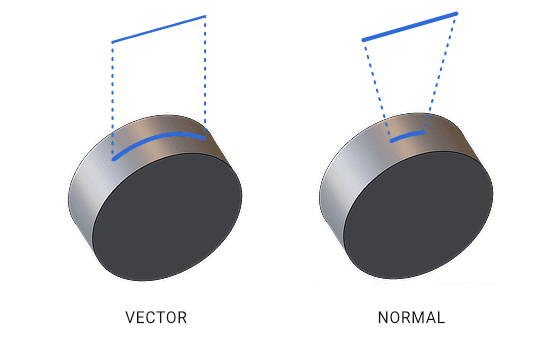

     • Method:
     • Normal: Projects in the positive Z-axis direction based on the construction plane.
     • Vector: Specify the projection direction with the Direction option.
       • Direction: Projects in the specified vector direction (X, Y, Z) based on the construction plane.

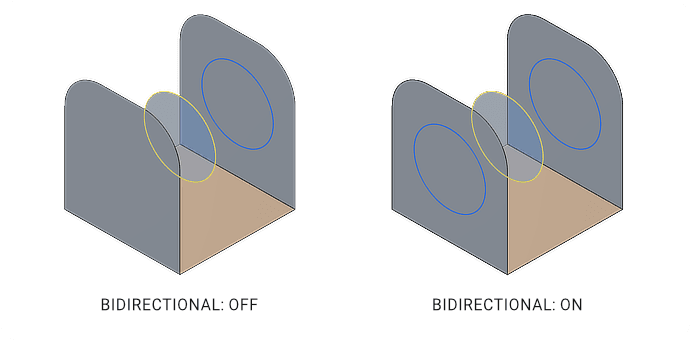

     • Bidirectional: When enabled, the projection will also occur in the negative direction of the specified axis.

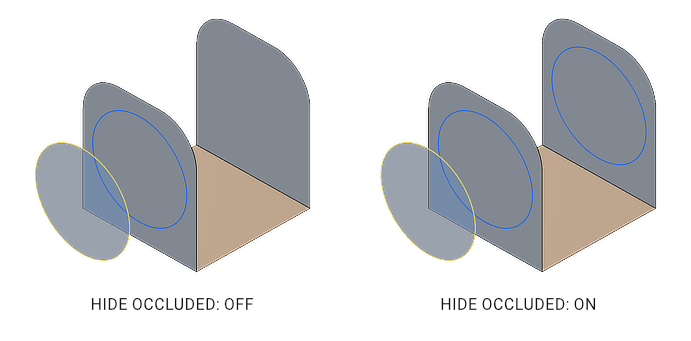

     • X-Ray: When enabled, the projection will not occur on hidden Faces in the positive direction of the specified axis.
5. Right-click or click OK in the Command Dialog to confirm.
6. The projected Curve will be created.
